Texas Test Plugs manufactures a growing range of products for the HVAC, hydronic and geothermal industry.
Test Plugs
Gauge Adapters
Test Kits
Pressure gauges
Oil Plugs
Geo-Gooser
Pressure/Temperature Test Plugs
| Part | NPT | Width | Body | Valve Core | Max Temp & Pressure |
|---|---|---|---|---|---|
| N76-01 | 1/4″ | 1 5/8″ | Brass | Neoprene | 200F / 1000 PSI |
| N76-02 | 1/4″ | 1 5/8″ | Brass | Nordel (EPDM) | 200F / 1000 PSI |
| N78-01 | 1/2″ | 1 5/8″ | Brass | Neoprene | 200F / 1000 PS |
| N78-02 | 1/2″ | 1 5/8″ | Brass | Nordel (EPDM) | 200F / 1000 PS |
| N76L-01 | 1/4″ | 3″ | Brass | Neoprene | 200F / 1000 PS |
| N76L-02 | 1/4″ | 3″ | Brass | Nordel (EPDM) | 200F / 1000 PS |
| N78L-01 | 1/2″ | 3″ | Brass | Neoprene | 200F / 1000 PS |
| N78L-02 | 1/2″ | 3″ | Brass | Nordel (EPDM) | 200F / 1000 PS |

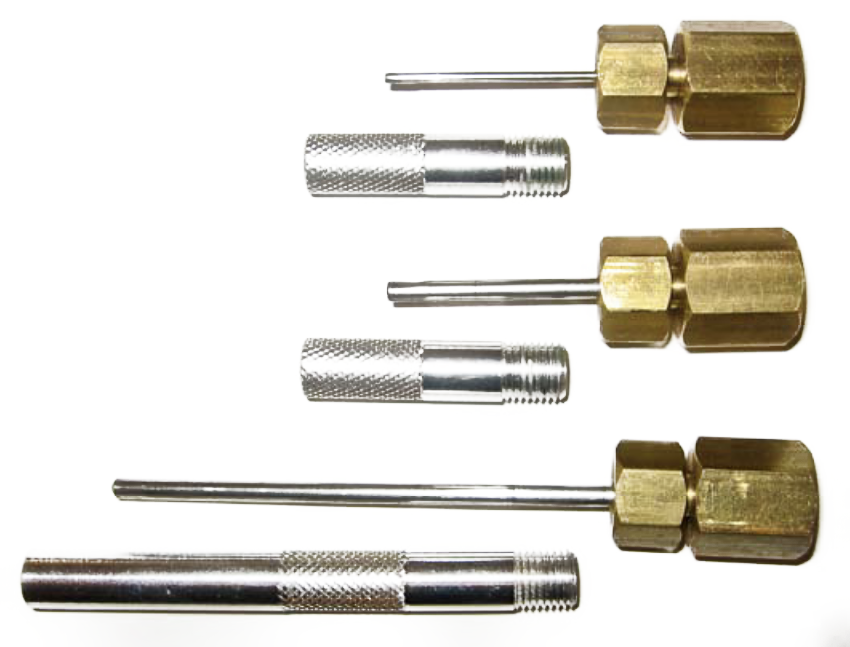

Gauge Adapters
| Part | NPT | Probe Dia. | Probe Length |
| GA80-01 | 1/4″ | 1/16″ | 1 1/4″ |
| GA80-02 | 1/4″ | 1/8″ | 1 1/4″ |
| GA80-03 | 1/4″ | 1/8″ | 3 1/8″ |
All gauge adapters come with a stainless steel probe guard.
Test Kit
Starter Kit includes:
- 2″ Pressure Gauge
- N76-02 test plug
- GA80-02 gauge adapter
- 2 thermometers
Deluxe Kit includes
- 3″ Pressure Gauge
- N76-02 test plug
- GA80-01 gauge adapter
- GA80-02 gauge adapter
- 2 thermometers
