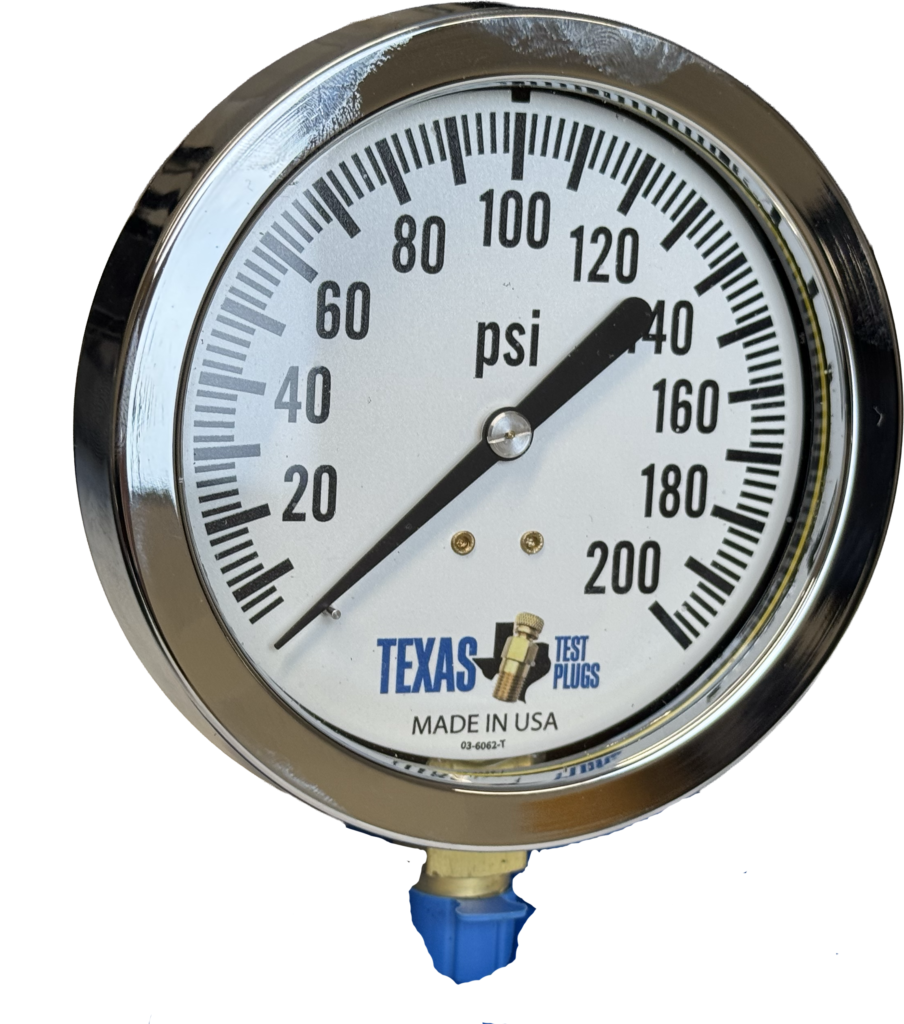

Premium Liquid-filled pressure gauges designed for reliability and long service life. Available with chrome-like or black bezels. Options include the customer’s name of the dial.
Pressure Rating. 15 to 1000 PSI
Dial Size. 2.5” or 3.5”
Connection Size. ¼” NPT
Internal Material Brass
Connection Location Bottom
Lens Material Acrylic
Case Material Zytel Nylon
Temperature -50 deg. F to 160 deg. F
Accuracy. 2 ½” ASME Grade B (3%-2%-3%)
3 ½” ASME Grade 1A. 1% of full scale
Application. Suitable for air, water, oil, gas or other material not corrosive to brass.
Temperature compensated: An internal compensating diaphragm compensates for changes to internal case pressure caused by changes in ambient temperature. Especially important on lower pressure ranges.
0-15 PSI. Spec. LFS210-15
0-30 PSI. Spec. LFS210-30
0-60 PSI. Spec. LFS210-60
0-100 PSI. Spec. LFS210-100
0-200 PSI. Spec. LFS210-200
0-300 PSI. Spec. LFS210-300
0-400 PSI. Spec. LFS210-400
0-600 PSI. Spec. LFS210-600
0-1000 PSI. Spec. LFS210-1000
0-15 PSI. Spec. LFS310-15
0-30 PSI. Spec. LFS310-30
0-60 PSI. Spec. LFS310-60
0-100 PSI. Spec. LFS310-100
0-200 PSI. Spec. LFS310-200
0-300 PSI. Spec. LFS310-300
0-400 PSI. Spec. LFS310-400
0-600 PSI. Spec. LFS310-600
0-1000 PSI. Spec. LFS310-1000

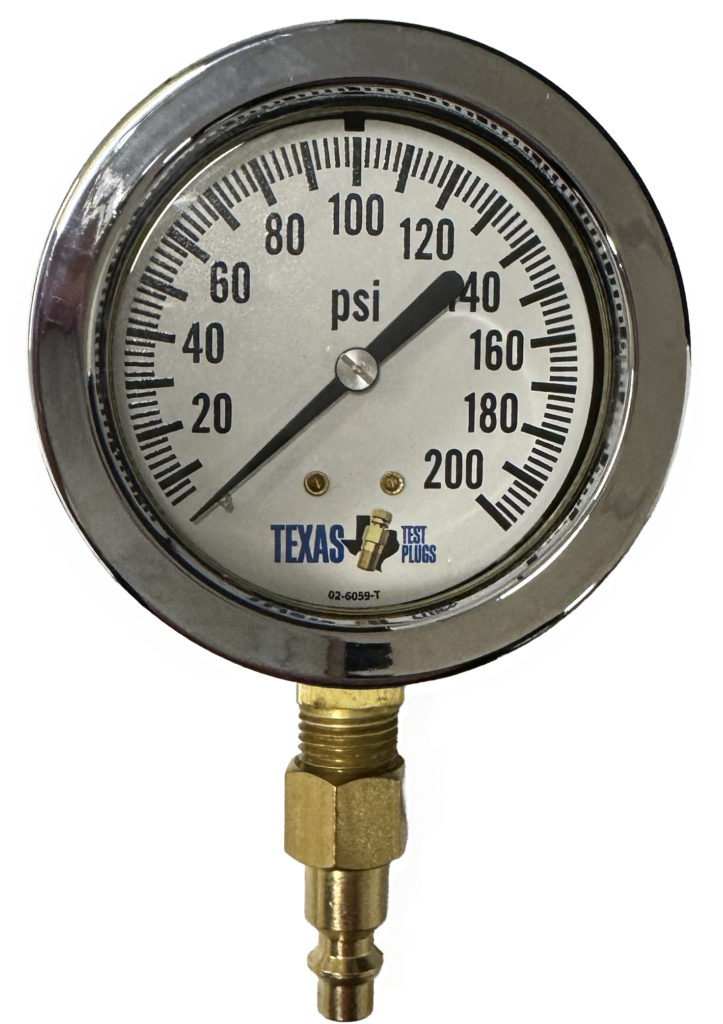

Pressure gauge with quick-connect.

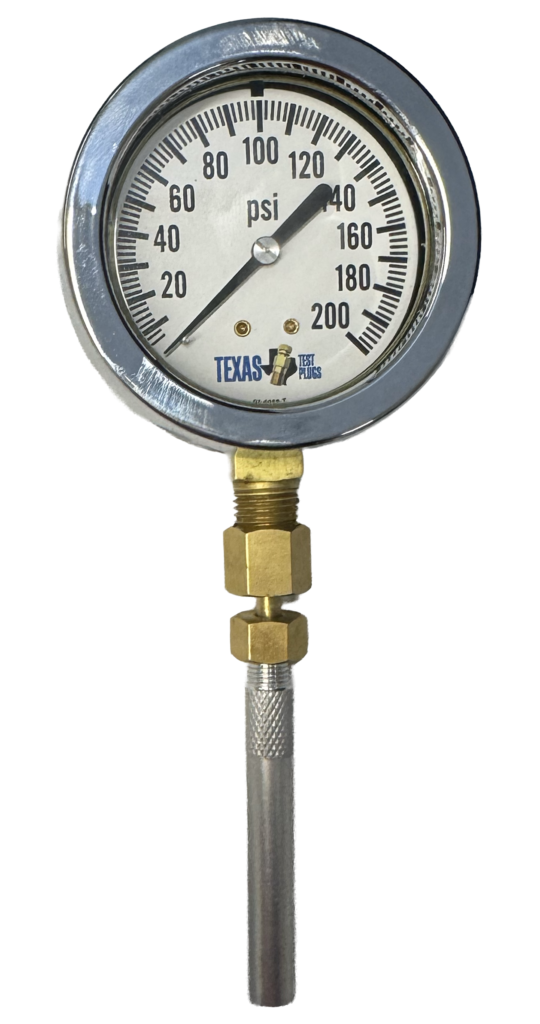

Pressure gauge with gauge adapter for use with P/T plugs.
Contact sales@txtestplugs.com for resale/distributor pricing.
Additional dial sizes and connection types are available. Just Ask.
Custom options and assemblies are available.
